Installation Manual


multi zone installation manual


multi zone user's manual







Service Manual




Thermocore Multi Zone Service Manual

T3 Service Manual








Wiring Diagrams





1602200001921-T321S-H224-C&T321S-H218-C

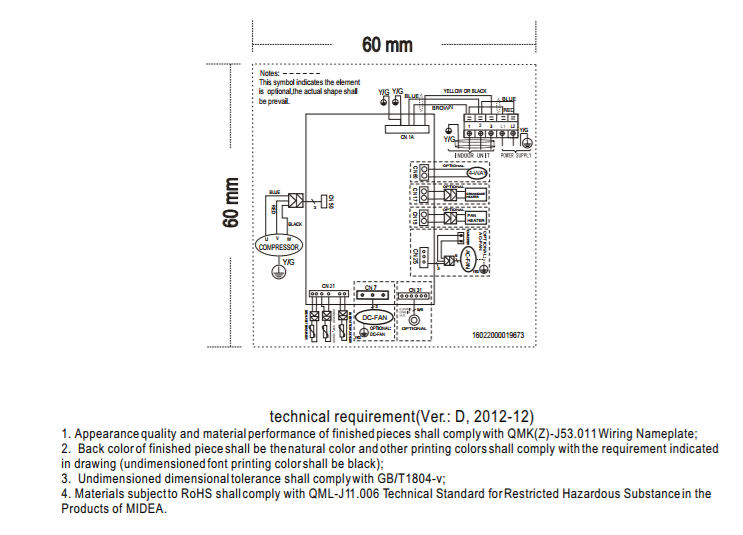

16022000019673-T322S-H212-C

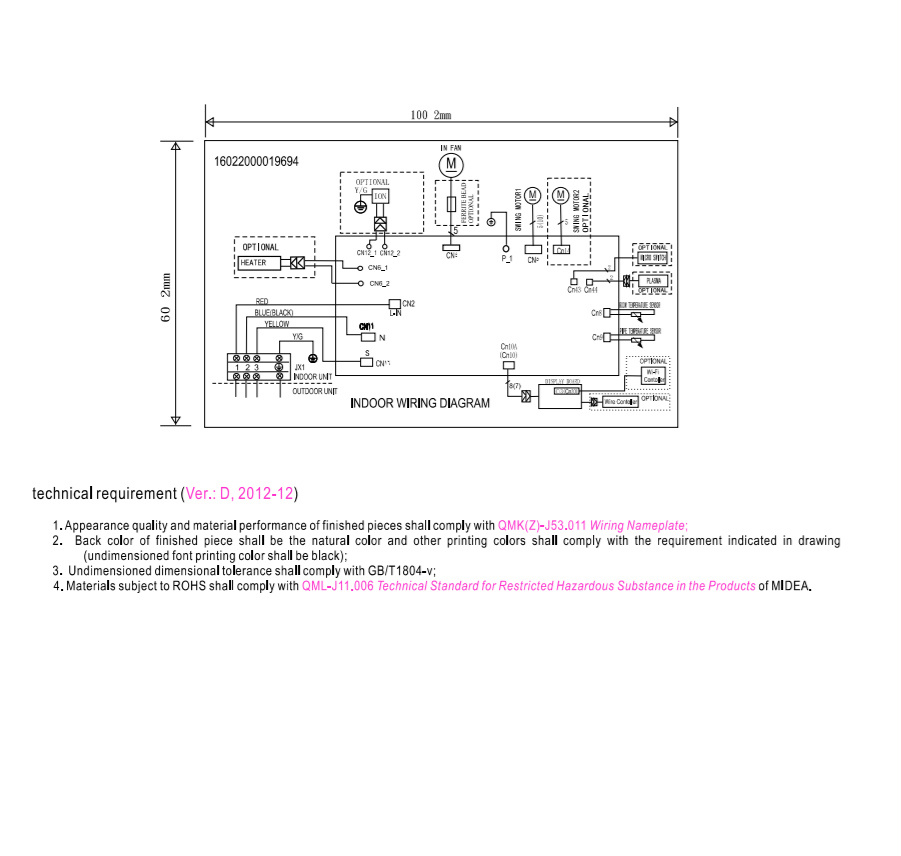

16022000019694-T318S-H230-E&T316S-H236-E&T321S-H224-E&T3-OS212-EW&T321S-H218-E&T323S-H109-E&T322S-H112-E&T3-OS209-EW


16022000020318-T322S-H112-C &T3E16S-H112-C&T323S-H109-C

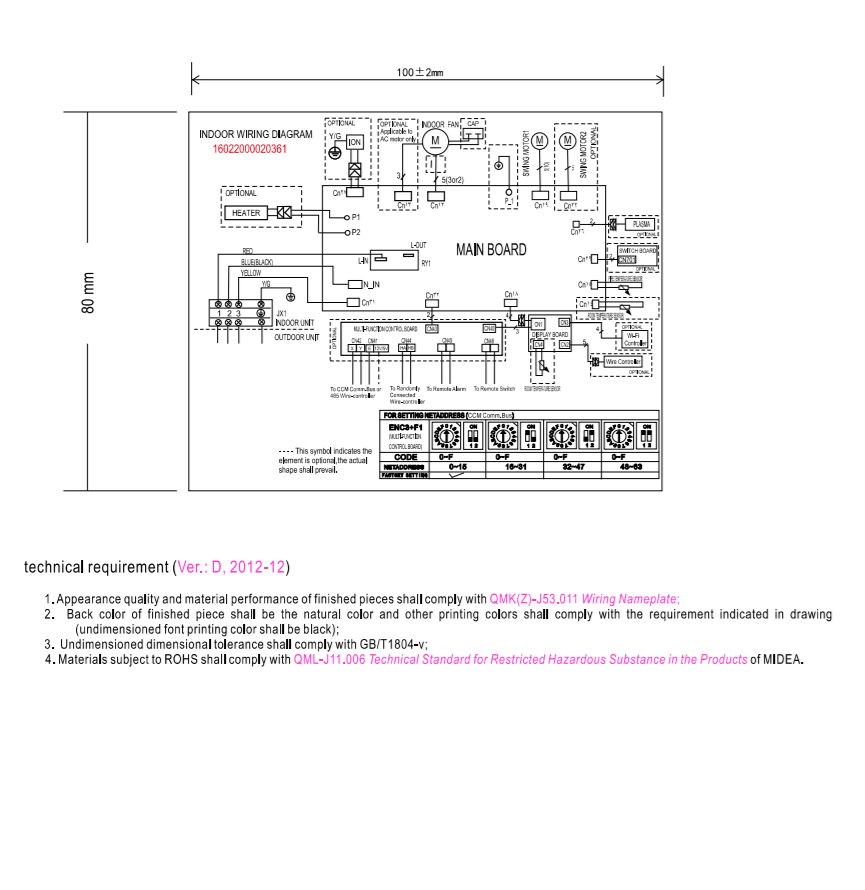

16022000020361-T3E16S-H112-W

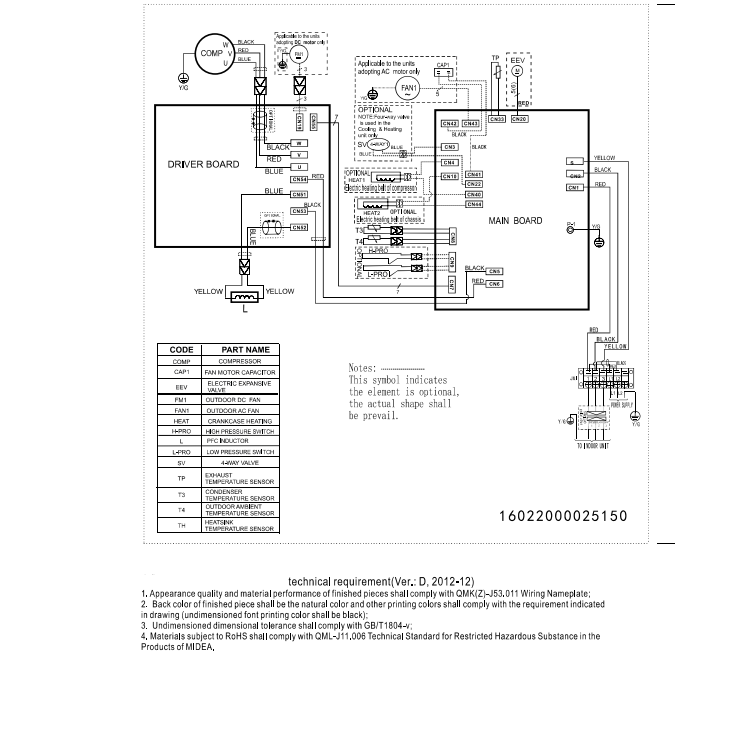

16022000025150-T318S-H230-C & T318S-H230-C

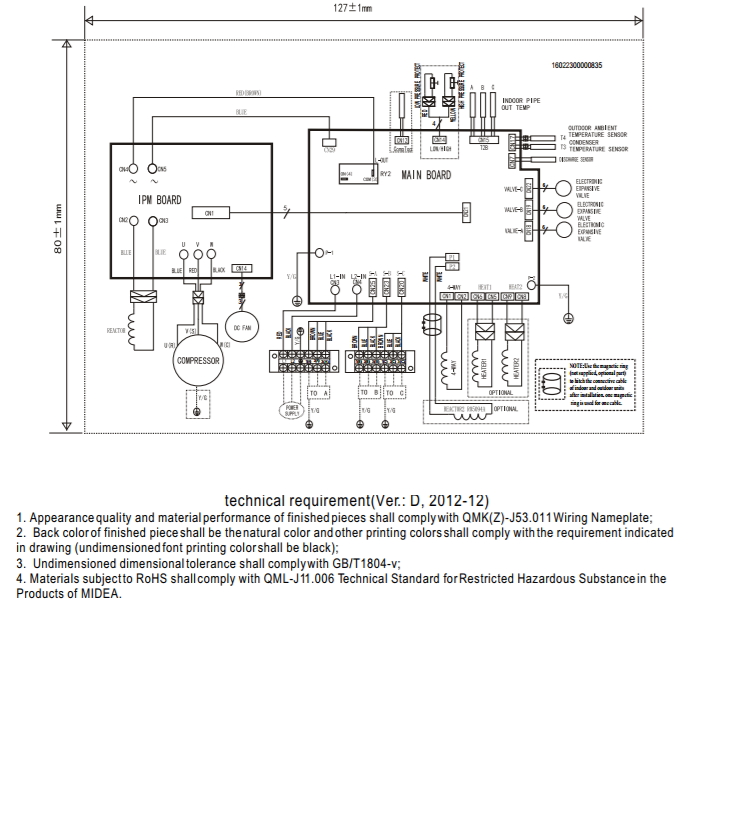

16022300000835-T322D-H236-C


16022300000873-T322D-H224-C

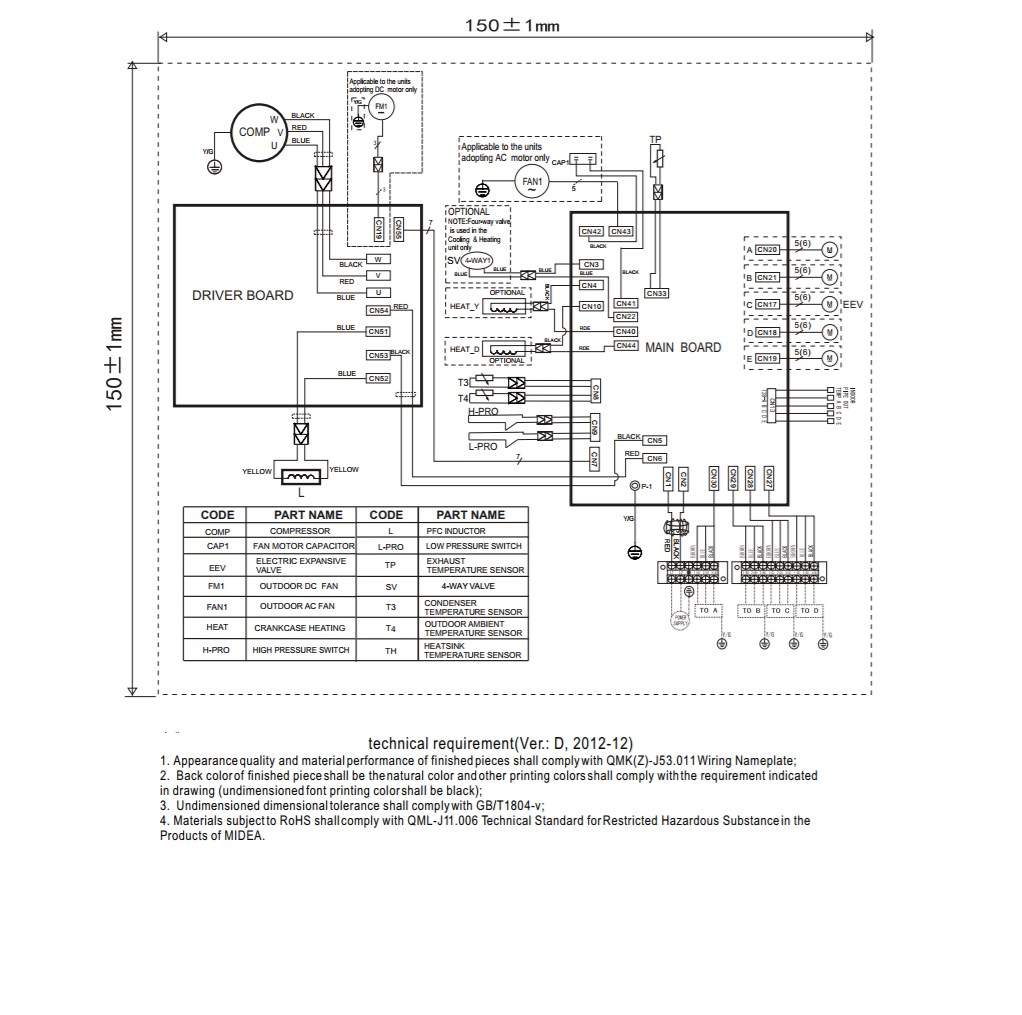

16022300000896-T323D-H248-C


16022300001354-T321Q-H263-C


16022500001266-T3C18S-H236-EC & T3C17S-H248-EC


16022500003306-T3C18S-H248-C


16022500003704-T3-OS224-EC & T3-OS212-EC & T3-OS218-EC


16022700000735-T3C18S-H248-ED

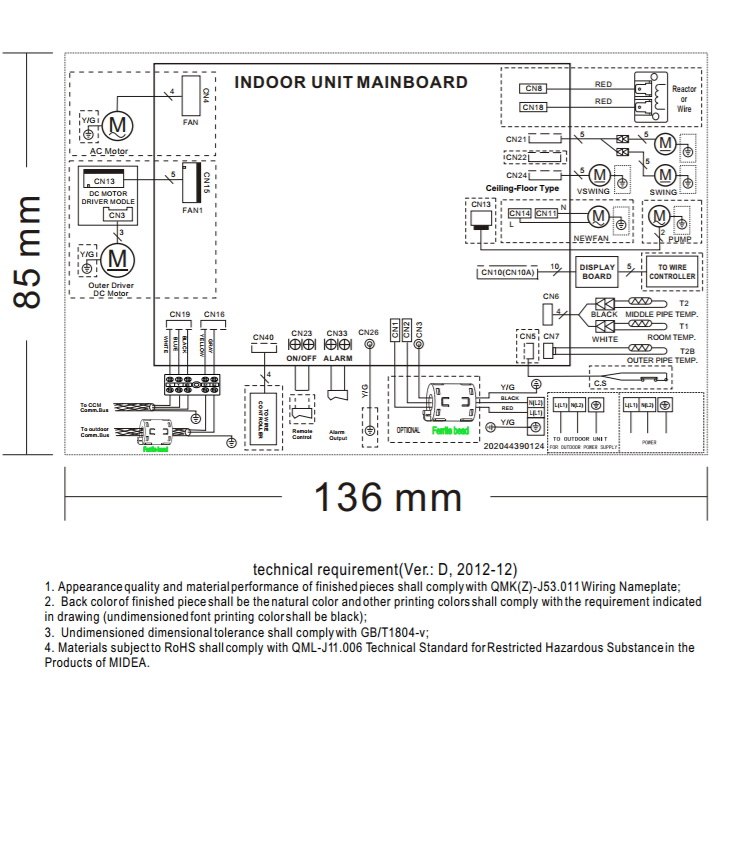

16022700000758-T3C16S-H236-ED

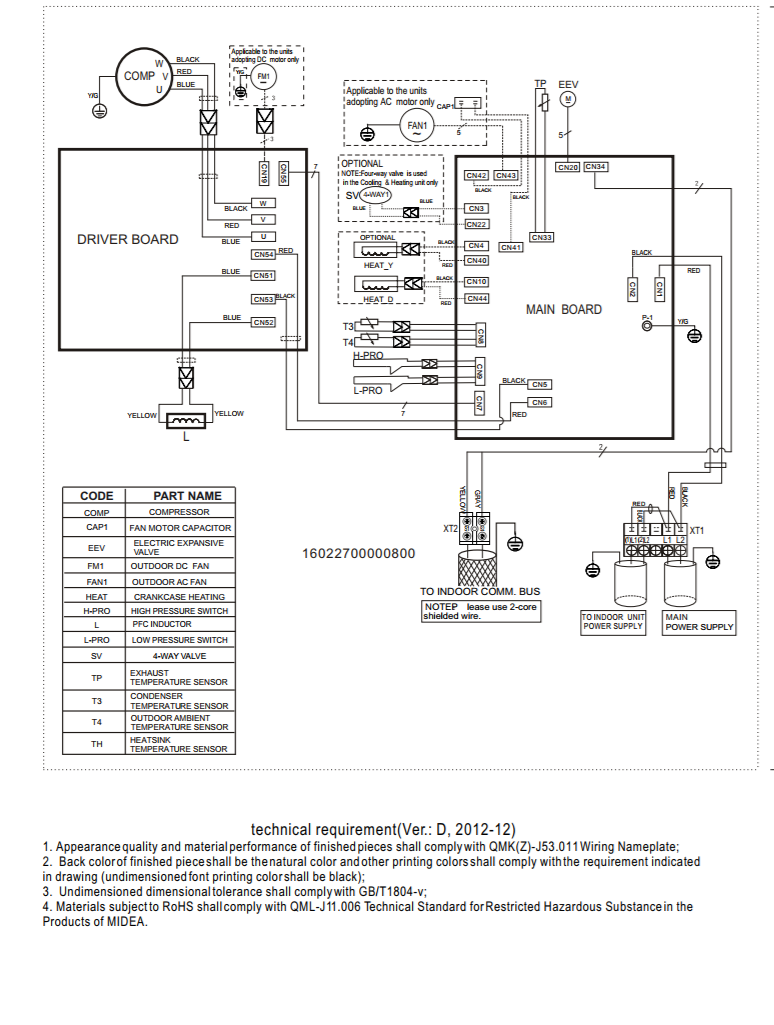

16022700000800-T3C18S-H236-C


16022700002628-T3-OS218-ESC
